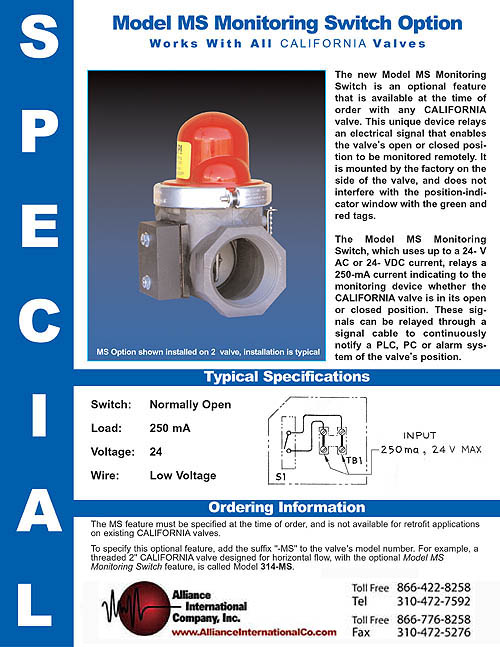

-MS Monitoring
 Specification Sheet



Please click here for the pdf version of this page
Return To Specialty Valve Page


The new Model MS Monitoring Switch is an optional feature that is available at the time of order with any CALIFORNIA valve. This unique device relays an electrical signal that enables the valve’s open or closed position to be monitored remotely. It is mounted by the factory on the side of the valve, and does not interfere with the position-indicator window with the green and red tags.


     The Model MS Monitoring Switch, which uses up to a 24- VAC or 24- VDC current, relays a 250-MA current indicating to the monitoring device whether the CALIFORNIA valve is in its open or closed position. These signals can be relayed through a signal cable to continuously notify a PLC, PC or alarm system of the valve’s position.
